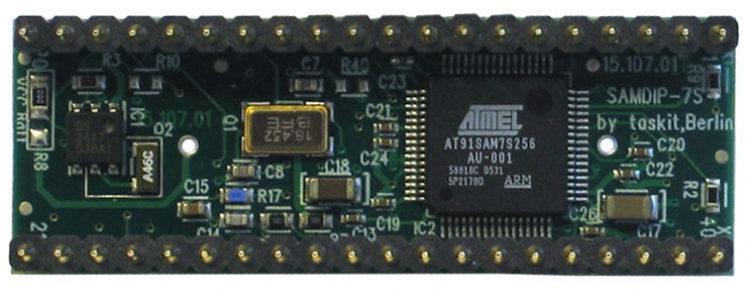

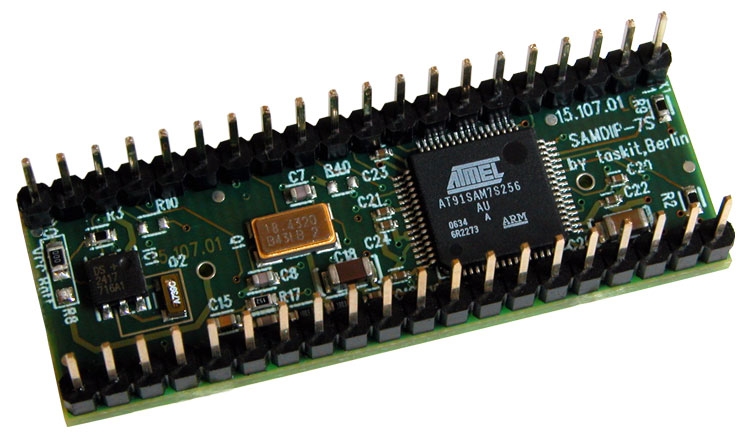

Price list SAMDIP-7S

AT91SAM7S256 processor, 64 KB SRAM, 256 KB Flash, serial number, RTC

Enlarge picture

Print product data sheet

• WINARM C compiler available
• Bootloader integrated
• 48 MHz
• 256 KB internal Flash
• 64 KB internal SRAM
• DMA controller for peripherals
• 32 programmable I/O ports
• 3 USART
• 1 TWI (I²C compatible)
• 1 USB 2.0 device
• 8 ADC channels
• 1 one-wire RTC
• 1 SPI
• 1 SSC
• Temparture range: -40 to +85 C°

Length: 50.8 mm
Height: 17.6 mm
